How to Record a Screen with OBS

  1. Download and launch the OBS application.

  2. Go to the Sources box at the bottom and click +, then select the Display Capture option.

  3. Click Start Recording to begin capturing.


Save at least half the time that takes by instead capturing your screen with Movavi Screen Recorder – a comprehensive and intuitive alternative to OBS!

Edited by Ben Jacklin
56 055

OBS – or Open Broadcaster Software – is one of the most popular programs available to help users record videos from their computer screen. This article can serve as your ultimate tutorial on how to record a screen with OBS. You’ll also find a comparison with an alternative screen recorder from Movavi.

Performance

High-performance software that can be used to record anything on your computer screen

Performs flawlessly and anyone can use it upon installation

Customization

Interface is customizable

Customization options geared toward recordings over an interface

Our goal is to provide you with only verified information. To ensure this, Movavi Content Team does the following:

  • When selecting products to include in our reviews, we research both demand and popularity.

  • The team tests all the products mentioned in this article.

  • When testing, we compare the key characteristics of the products, which include selecting capture area, schedule recording, showing keystrokes and mouse, and other significant features.

  • We study user reviews from popular review platforms and make use of this information when writing our product reviews.

  • We collect feedback from our users and analyze their opinions of Movavi software as well as products from other companies.

reskin_disclaimer_person_lp

If you need an alternative to OBS, our special pick is Movavi Screen Recorder. The program can help beginners and advanced users to capture screen recordings with ease. It gives you the ability to record from multiple sources, screencast, show keystrokes and mouse movements, and a lot more.

Key features:

  • Can record mouse movement and keyboard inputs
  • Supports HD and 4K quality
  • Real-time drawing function

How to install the OBS screen recorder

Let’s start our OBS review with how to install the software.

  1. Go to the official website and select your OS from the three blue buttons (Windows, macOS, or Linux) and download the installer file.
    Go to the OBS website

  2. Once it’s downloaded, open the installer file.

  3. Follow the prompts to install OBS Studio on your computer. When you see options to add plugins, only install the ones that are necessary to run OBS on your computer.

OBS Studio interface

OBS Studio is not the most user-friendly platform for newer users, especially those who don’t have a lot of screen-recording and video-editing experience. While its interface can be a bit intimidating at first, if you know the basics, getting started is fairly straightforward. Before you dive in, get to know the six basic parts of the software:

  • Video and audio sources: this is where you’ll find the options to set your audio sources, like system audio or microphone, as well as video sources, such as screen capture or webcam footage.

  • Scenes: this section of OBS shows your “scenes,” which are just the video and audio coming from your chosen sources (e.g., livestream, images, screen recording, etc.).

  • Audio mixer: this is where you’ll adjust audio in your recording, including volume, trimming, voice-over, and other settings.

  • Scene transitions: this feature allows you to seamlessly transition between video clips with animations, like fades or dissolves.

  • Controls: in this section, you can start and stop your screen recording, make adjustments to recording settings, etc.

  • Preview window: after you finish recording but before you export your finished file, you can get a preview of what it will look and sound like in the preview window.

Setting up OBS

Webcam settings

If you want to capture your webcam feed with OBS Studio, you’ll first need to add your webcam as a source. To do this, go to the Sources section and click on the + button to add a source. Select Video Capture Device. Give your webcam a nickname that you can easily remember and click OK. Then, from the dropdown menu, choose your webcam. Now, you’re all set to start recording your webcam feed with OBS Studio.

Recording audio

To record audio in OBS Studio, you’ll need to make sure that you have the right audio inputs selected. In the Controls section, go to the Settings menu and click on the Audio tab. Here, you should see options to select or deselect the available audio inputs, including system audio, connected microphones, etc. Choose the devices you want to use for your project’s audio and make sure that you don’t have any devices selected that you don’t want to use. This section also gives you the option to enable push-to-mute or push-to-talk capabilities for any or all of the audio devices you’re using. This can be useful when you want to minimize excess noise while focusing on dialog or system audio in different parts of your video.

Plugins

Because OBS Studio is an open-source screen recorder, it has a lot of user collaboration. As a result, many users have created plugins to enhance the OBS experience. OBS maintains an extensive list of community-created plugins. For most plugins, Windows and Mac users can just download the plugin and follow the prompts. Linux users can also opt to use Flatpak to automatically install plugins. To manually install a plugin, you’ll usually just need to add it to the program files. You can typically find those program files by navigating to the appropriate folder for your system:

  • Windows (64-bit): C:\Program Files\obs-studio\obs-plugins\64-bit

  • Windows (legacy 32-bit): C:\Program Files\obs-studio\obs-plugins\32-bit

  • macOS: ~/Library/Application Support/obs-studio/plugins

  • Linux: ~/.config/obs-studio/plugins

The best OBS recording settings

While OBS has a somewhat steep learning curve, it does have several really useful settings that users find very useful. Some of the best OBS settings include:

  • Video settings: with the base (canvas) resolution and output (scaled) resolution settings, users can adjust their video settings to match their screen or make adjustments based on other parameters, as well as set the bitrate for their export video. Set a lower resolution if you face the high CPU usage issue.

  • Audio settings: with these settings, you can choose your audio inputs and outputs, set push-to-talk or push-to-mute on different audio feeds, and make other adjustments to optimize your video’s audio.

  • Encoder: OBS Studio also includes a video and audio encoder that encodes files in different video and audio formats. This allows you to convert your export file to the format of your choice without a third-party video converter.

How to use OBS Studio to record a screen on a PC

To screen record with OBS, you’ll need to download and install the program from the official OBS site. The program runs on Windows 8.1, Windows 10, or Windows 11. So as long as you have a relatively new PC, you should be fine. Just be sure to specify that you want to use the program for screen recording when installing the program.

Step 1. Install OBS Studio

Follow the link below to download the program and install it.

Download OBS Studio

Once you’ve downloaded and installed the program, follow these steps to learn how to record using OBS.

Step 2. Launch the program

Open the program however you like – icon, start menu, search. Upon opening, OBS should auto-add a Scene into the interface. But if it doesn’t, simply click on the + icon. You’ll find it within the box that reads Scenes on the bottom left corner of the screen.

Step 3. Specify the settings

Look next to the Scenes box, and you should see the Sources box. Click the + at the bottom left of the Sources box. A menu of options should appear. Click Display Capture. In the pop-up window, create a title and click OK.

Step 4. Choose the capture method

In the next pop-up window, you’ll have options to select your display method and capture method and a check-box to select whether you want to show your cursor on the recording. If you’re using multiple monitors, be sure to click the down-arrow and select the appropriate display from the drop-down menu. When you’ve finished, click OK.

Step 5. Select the output folder

Click Settings on the bottom right of your screen. In the new window, click the Output icon in the menu on the left. In the Recording box, you need to choose your destination file under Recording Path. To do this, click Browse and select a destination.

Step 6. Start recording

Once you’ve made all of your selections, click the Start Recording button on the OBS Studio record screen. It’s the icon on the lower right side of your screen below Start Streaming.

How to use OBS to record a screen and audio on a Mac

MacOS 10.13 is the current oldest compatible version that works with OBS Studio. Be sure that your Mac meets the requirements, and then download and install OBS.

Download OBS Studio for a Mac

Once you’ve installed the program, the steps for how to make OBS record your screen on a Mac are identical to Windows. But here’s a shortened version of the section above to set up OBS for recording.

Step 1. Specify the settings

Locate the Sources box at the bottom of your screen and click the + icon. From the options menu, select Display Capture and click OK.

Step 2. Choose the output folder

Click Settings on the bottom right and then Output from the sidebar. In this menu, use the Browse button next to Recording Path to choose a destination folder.

Step 3. Record your screen

To make a screencast, click Start Recording on the lower right side of the interface.

How to record using OBS Studio on Linux

To use OBS screen recorder on Linux, there are two requirements:

  1. You must run Ubuntu 18.05 or higher.

  2. You have to install the FFmpeg video filter.

With those two requirements met, you can download and install OBS Studio screen recording software from the official site.

Download OBS Studio for Linux

After that, the steps to record a desktop or any video source are basically the same as Windows or Mac, with one small exception.

Step 1. Specify the recording settings

Open OBS and then locate the Sources box at the bottom. Click the + icon at the bottom of the box and an options menu will appear. Select Screen Capture from the menu. Screen Capture instead of Display Capture is the key difference from Windows or Mac.

In the pop-up menu, select OK. And if you have multiple monitors, be sure to pick the one you want to record.

Step 2. Choose the output folder

Click the Settings icon on the bottom right and choose Output from the sidebar menu. Next to Recording Path either type one or click Browse to choose a destination for the saved file.

Step 3. Record the screen

Click the Start Recording button on the bottom right of the interface.

How to record a mobile device screen using a screen recorder from OBS

There is no mobile application or mobile version of OBS available yet. Many newer smartphones already have screen recording software built into their OS, so there isn’t much need.

But if you absolutely want to use the screen recorder from OBS on your mobile phone, there is a workaround. But you’ll need a cable to connect your phone to a computer. The lightning connector on the iPhone is standard. And if you have an Android device, you’ll need whichever connector your phone uses – typically USB-C or USB Micro-B.

With the cable ready, follow these steps:

iPhone

  1. Connect your iPhone to your Mac or PC with a lightning cable.

  2. Open OBS and locate the Sources box at the bottom of the display.

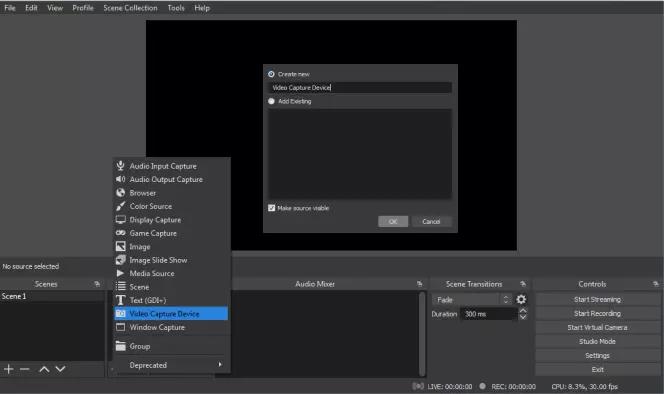

  3. Click the + icon at the bottom of the box and choose Video Capture Device from the menu.

  4. Within the pop-up menu that appears, check the circle that says Create New. Then click OK.

  5. Another window should appear. Next to Devices click the down arrow to open a drop-down list and choose your iPhone. If it isn’t there, check your connection and re-open the menu to see if it shows up.

  6. When your iPhone screen displays on the interface, simply click the Start Recording button to record.

Android device

There is literally no difference in the steps between an iPhone or an Android device for recording your screen with OBS. Follow the steps above to get things moving. The only difference is that you’ll use a different cable to connect to your computer and select your Android device from the drop-down menu next to Devices.

Again, there are no applications or mobile versions of OBS, so it’s not the best method of capturing your mobile phone’s display. In fact, capturing the screen this way is known to be glitchy because you’re running the recording through a cable.

If your mobile device doesn’t come with screen recording software, it’s best to look through the Apple or Google Play store to find an alternative application. There are plenty of applications designed for mobile screen recording in both marketplaces.

How to record system sound in OBS

Setting up OBS to record internal audio is relatively easy. Follow these steps to get it going:

Windows

  1. Open OBS, and within the Sources box, click the + icon to add a new source.

  2. Select Audio Output Capture from the menu.

  3. A pop-up menu will appear. Choose a name or leave it as-is and then click OK.

  4. In the next menu, click the drop-down menu next to Default. Then, choose the default audio output device you use on your computer, or whichever you’re using. Click OK and you’re done!

Note: If you’re able to view the meters moving for your audio but can’t hear anything, it may be necessary to use a Multi-Output Audio Device or a monitoring system.

Mac

Mac is a little different from Windows. You must first download a program called Blackhole. It’s a set of drivers that allows you to push your audio to other applications with no latency issues.

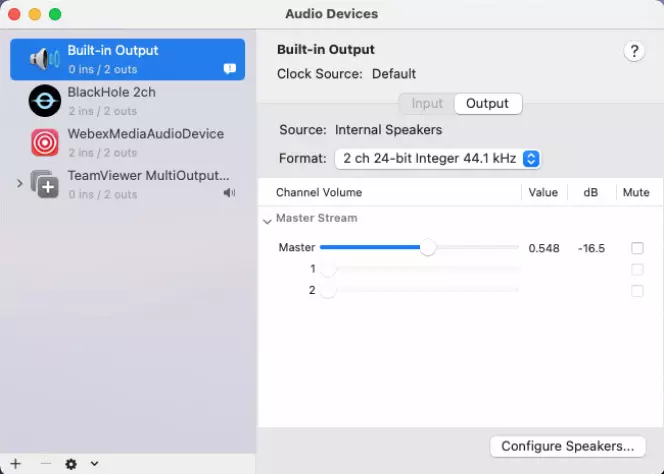

Once you’ve downloaded Blackhole, open the Audio MIDI Setup application on your Mac. You can either search for it in the search bar or go to Applications > Utilities > Audio/MIDI Setup. From here, you must create a new Multi-Output device that has both Blackhole and your audio output.

After you’ve set this up, follow the same steps as in the Windows section above. Only you’ll select the Multi-Output device you created.

Double-check OBS is receiving the audio by monitoring the meter on the audio mixer. It’s essential that the meter doesn’t move into the red. Otherwise, your audio will definitely come out distorted in your recording.

Once all this is set up, the sounds that would typically come out of your speaker will now record to your video.

Recording multiple audio tracks

Recording multiple audio tracks can be extremely advantageous when you get to the post-production phase of a video or audio project. If you have multiple people speaking in a video, one may be louder than others, or there may be a background noise that you want to cut out. This is all much easier to do when you can separate out each individual audio track.

Much like layering video tracks to create a cohesive visual effect, when you record multiple audio tracks, you can layer them, edit different tracks separately, and put together a professional-sounding end product. We’ll discuss how to record multiple tracks separately or at the same time momentarily.

Recording a podcast

It’s possible to record a podcast with OBS Studio, but since OBS wasn’t specifically designed for podcasting, it can be a bit tricky. If you’re going to use this software for podcasting, we recommend utilizing OBS’ screen-recording capabilities, especially if you’re interviewing someone remotely for your podcast. To do this, you can start a video conference and record your screen and your webcam feed. Be sure to capture both your system audio and your microphone audio to ensure that you capture your voice and your interviewee’s voice for the podcast.

Recording separate audio tracks

OBS Studio allows users to capture up to six audio tracks separately. If you’re recording each piece of audio individually, you can save them as different audio files and drop them into your timeline on their respective audio tracks.

If you’re recording your audio simultaneously, you’ll need to adjust a couple of settings. To do this, follow these quick steps:

  1. In OBS Studio, click on the Control tab and go to Settings

  2. In the Output Mode dropdown menu, click on Advanced

  3. Click on the Recording tab, set your preferred export format, and then check the boxes for as many audio tracks as you want to record.

  4. Navigate back to the main screen and choose your audio sources (e.g., microphone, system audio, etc.).

  5. Click on the settings (gear) icon in the Audio Mixer and choose Advanced Audio Properties.

  6. Match your audio sources to their respective audio tracks, and you’ll be ready to start recording.

How to record a microphone in OBS

Recording from a microphone is a little easier than internal audio. The same process works for both Windows and Mac, so just follow these steps:

  1. Open OBS and click the + icon in the Sources box at the bottom of the screen.

  2. Choose Audio Input Capture from the menu that appears.

  3. A pop-up menu will appear. Name your source or leave it and then click OK.

  4. Click the drop-down menu next to Device and select your desired microphone from the menu.

Within the Audio Mixer box, you’ll see a new channel appear. You can monitor these meters to set your recording levels.

Note that with this method, your microphone audio will record directly to the video file and all audio sources will go into a stereo audio track within the video file that outputs.

If you want to do advanced-level audio mixing, right-click on the audio mixer and then select Advanced Audio Properties from the menu that appears.

How to record a webcam in OBS Studio

In addition to other methods, you can use OBS Studio to record a webcam. As long as the webcam properly connected to your desktop, then its video and audio output can be connected to OBS Studio. Plus, OBS can record not only your webcam but also your screen, which is useful for streamers or people who make tutorial videos.

Step 1. Add your webcam as a source

As with the other options, your webcam can be found as a source within OBS Studio’s settings if it is properly connected to your desktop. Within OBS Studio, open the settings and find Sources. Then, click the Plus icon to add a new video capture device. Hit Create New and name your webcam something that will help you remember it.

From the list of devices, select your webcam. We recommend using high for the preset, but you can configure that setting according to your needs. Don’t forget to double-check the audio source while you are in this menu, whether it is the webcam itself or another microphone.

Step 2. Choose the output folder

Next, go to the Output menu within the settings and find the Recording Path. This selects the destination for the video once you hit record. The easiest way to select the right path is to hit Browse and then navigate to the desired folder.

Step 3. Record the screen

Next, all you need to do is hit Start Recording located beneath Controls on the main interface. At that point, your recording or stream is rolling.

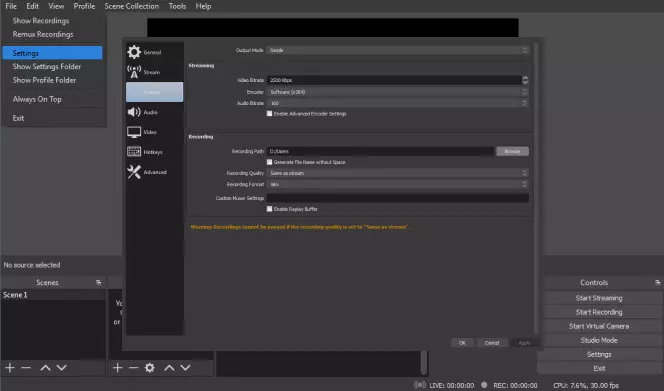

Where do OBS recordings go?

When you finish recording, OBS defaults the output to your default Video folder on Windows or Mac. To reveal the location, simply click File and then Show Recordings from the menu.

However, your files don’t have to go to the default Video folder, and it’s pretty easy to choose a custom location. Follow these steps:

  1. Click the Settings icon at the bottom right of the interface.

  2. Choose the Output tab on the sidebar on the left.

  3. Under the Recording box, you'll see Recording Path. Type or paste your file destination there or click Browse and select your desired folder.

Once your recording is complete, the files will route to that folder. You can use the same File > Show Recordings process to open the folder.

If you’re having difficulty playing your recording, you may need to check your output format – MP4, MPV, or MKV, for example. If it isn’t your desired format, don’t worry. Simply click File and then Remux Recording. Select your file and then choose a better format for remux.

Summary

With this guide, you now know the basics about how to use OBS to record a screen and audio. As stated, many reviewers have spoken about the software’s high learning curve.

If you’re looking for a solid alternative that’s easy-to-use for beginners and advanced users alike, Movavi Screen Recorder is an excellent choice. Though it’s not meant for gaming recording, it’s a superb option for residential, educational, and commercial use.

Movavi Screen Recorder

The perfect way to record anything from your screen

Disclaimer: Please be aware that Movavi Screen Recorder does not allow capture of copy-protected video and audio streams.

Movavi Screen Recorder

Frequently asked questions

How do I record my screen with OBS?

Why is OBS recording a black screen?

How do I set up OBS for recording?

What are the best OBS alternatives?

Is the OBS screen recorder free?

Is OBS good for screen recording?

Is OBS or Streamlabs better?

What is the best recording format for OBS?
